The product is good, decent brass valve and all. I wasnt really able to tell from the ad if I could modify it for an old work application, and somebody answered that they did, so i bought it. I've included some pictures to hopefully illustrate that it was easily modified for an old work application. The only thing i would do differently is probably make extra sure that the hole I drilled inside the wall through the floor was dead center below the opening for the rough in. Also, the trim ring is nice and big, and the box is shallow enough to slide up inside a standard 2x4 wall, which allowed me to attach the pex while the valve was installed in the box.
all good
Good product
Exactly as advertised
Nice product
Feature Product
- CONNECTION: 1/2 inch Crimp PEX (F1807) Connection and 1/4-inch OD compression outlet
- DIMENSIONS: Rough opening of 5-3/4-inch W x 4-7/8-inch H x 3-1/2-inch D; Faceplate Dimensions: 8-1/4-in w x 7-5/16-in H
- CONTENTS: Along with the ice maker box this pack includes a pre-installed 1/4-turn ball valve, support bracket, and a faceplate cover
- DESIGN: This outlet box is designed for recessed residential applications
- EASY INSTALLATION: One-piece design makes installation quicker and easier
Description

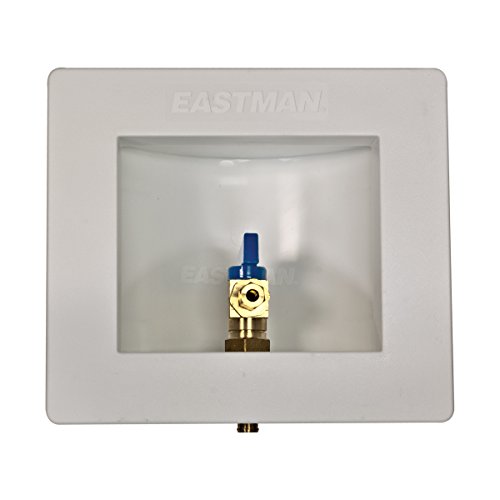

This Eastman 60233 Pex Pre-assembled Ice Maker Outlet Box is designed for recessed residential applications. It has a 1/2 inch Crimp PEX inlet connection and a 1/4-inch OD compression outlet with a rough opening of 5-3/4-inch width x 4-7/8-inch height x 3-1/2-inch diameter.
The outlet box comes complete with a pre-installed 1/4-turn ball valve, support bracket, and a faceplate cover of dimensions 8-1/4-inch width x 7-5/16-inch height. It is built with one-piece box and flange design. Valves governed by this Standard are intended for service at temperatures between 34⁰ F (1⁰ C) and 180⁰ F (82⁰ C), with an allowable working pressure rating not less than 125 PSI (862 kPa).
as described
Easy to install.
