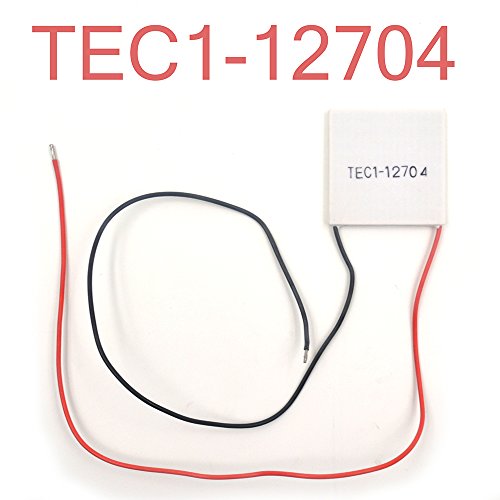

Pully TEC1-12704 TES1-12704 12V 4A 40mm x 40mm Heatsink Thermoelectric Peltier Cooler Square Ceramic Thermoelectric Cooling Module Plate Power Generator

---

Feature Product

• Model number: TEC1-12704 / TES1-12704
• Resistance: 2.5-3.5ohms (ambient temperature 23 ± 1 °C, 1kHZ Ac testing)
• Dimensions : 40mm x 40mm x 3.8mm
• QMax (W) : 45W
• ΔTmax(°C)≥67

Description

Pully TEC1-12704 TES1-12704 12V 4A 40mm x 40mm Heatsink Thermoelectric Peltier Cooler Square Ceramic Thermoelectric Cooling Module Plate Power Generator

Description:
A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on.

Specifications:
Model number: TEC1-12704
Resistance: 2.5-3.5ohms (ambient temperature 23 ± 1 °C, 1kHZ Ac testing)
Voltage : 12V
Umax (V) : 15.2V
Imax (A) : 4A
QMax (W) : 45W
ΔTmax(°C)≥67
Dimensions : 40mm x 40mm x 3.8mm
Type: Cooling Cells
Usage: Refrigerator/Warmer

Operating Tips:

Max. Operating Temperature: 138°C
Don't exceed Imax or Vmax when operating module.
Please carry out moisture protection options (seeling) in final application use.
Life expectancy: 200,000 hours
Failure rate based on long time testings: 0.2%

Package included:
1 x Pully TEC1-12704 TES1-12704 12V 4A 40mm x 40mm Heatsink Thermoelectric Peltier Cooler Square Ceramic Thermoelectric Cooling Module Plate Power Generator

---
